| CHENGDU MEIKE OPTICS CO., LTD | ||||||||||||
| Riflescope Specifications |
|
|||||||||||

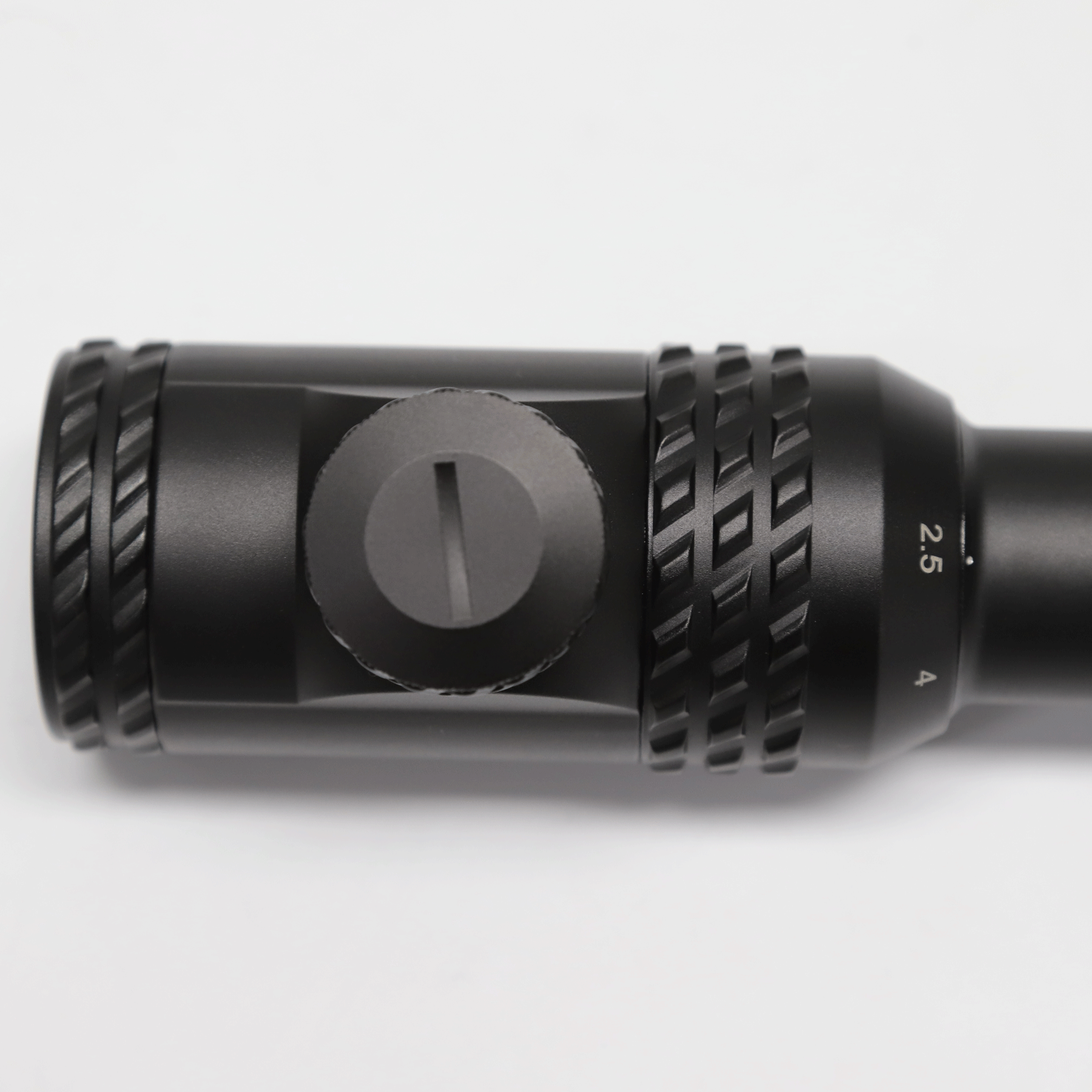

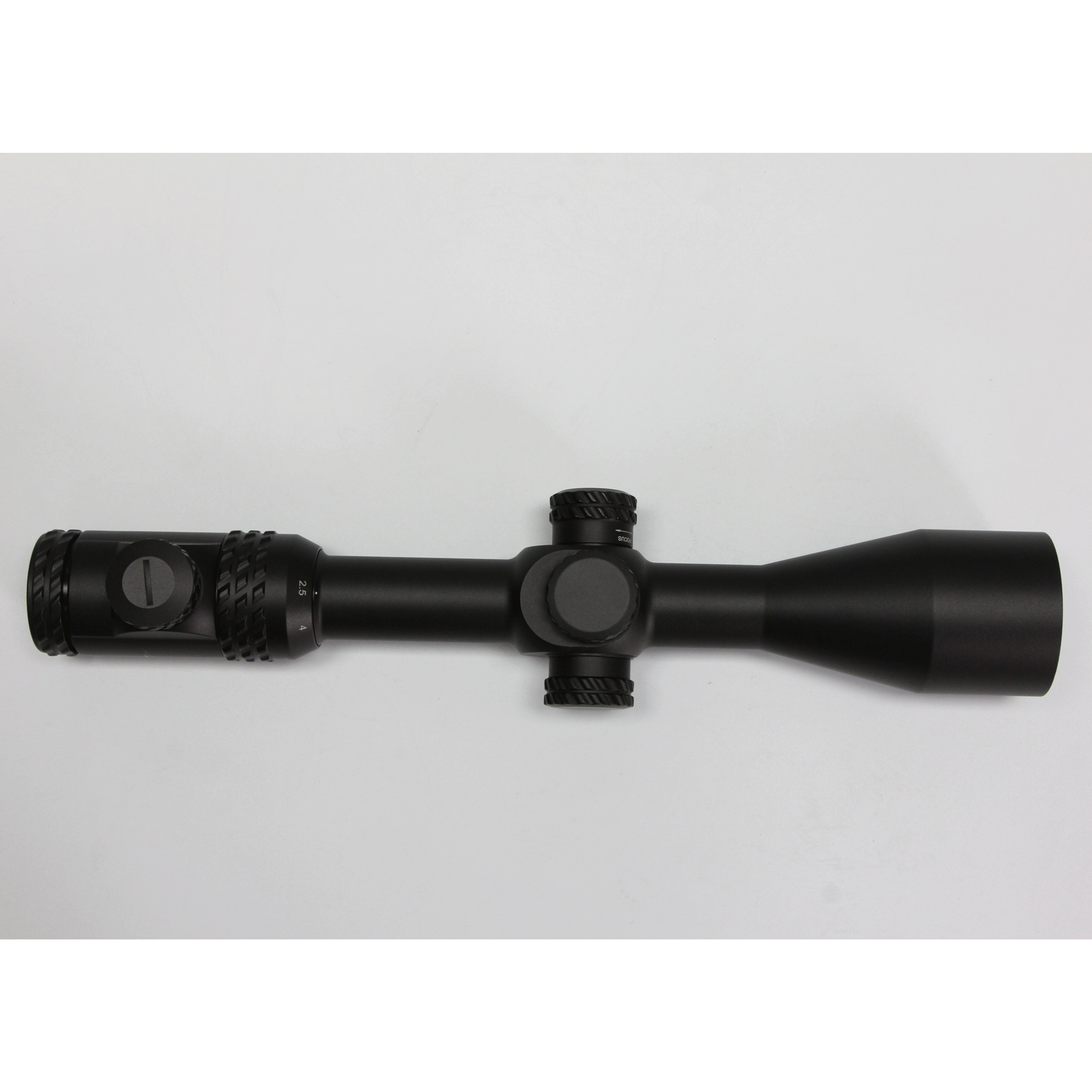

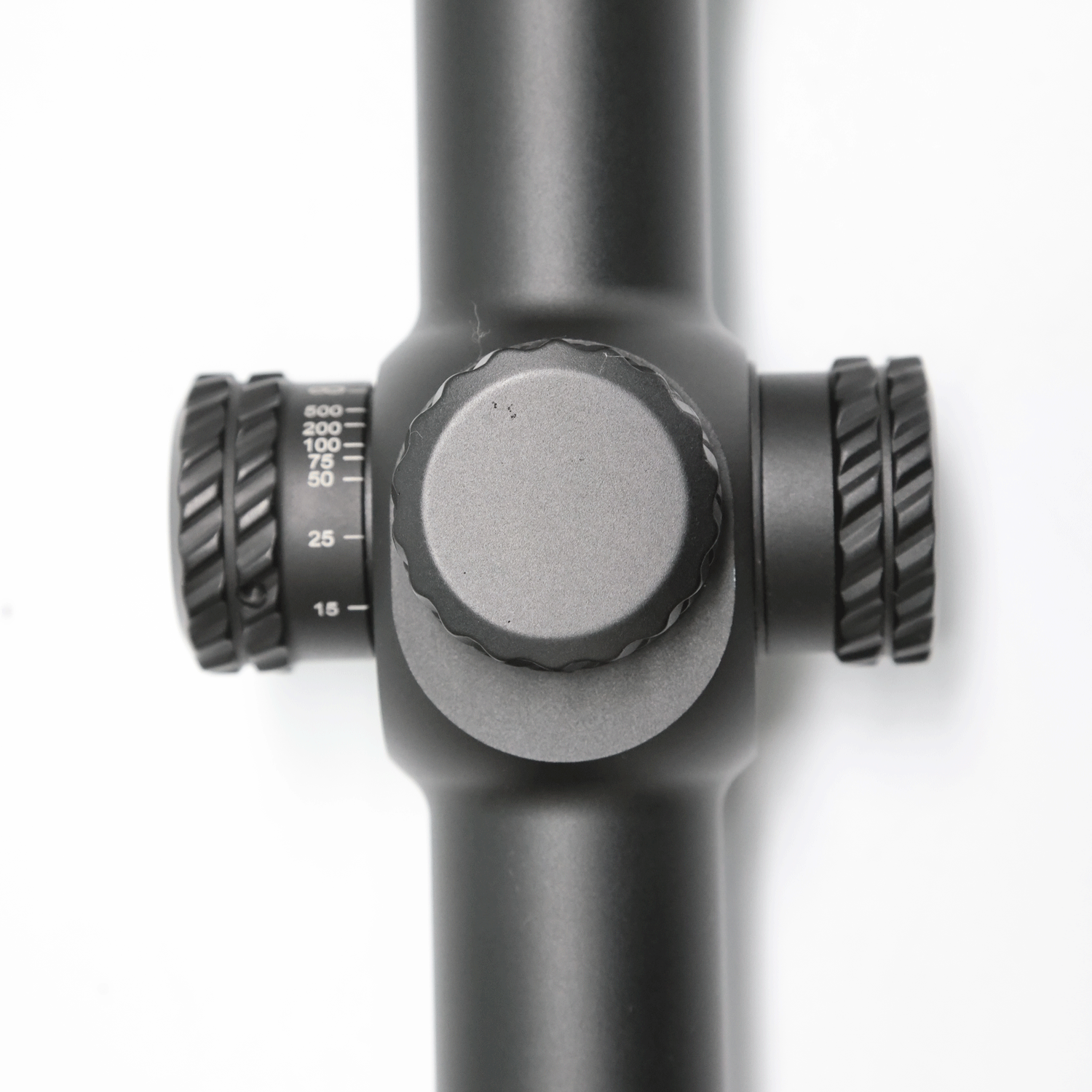

| 2.5-15X50SF-IR | ||||||||||||
| Specification | ||||||||||||
| Power | 2.5X~15X | Illuminated reticle | YES | Special Notes: | ||||||||
| Objective (mm) | 50 | Illuminated color | RED,GREEN | 1. Erector Tube must be secured with metal screws. | Yes | |||||||
| Focal Plane | second | Battery | CR2032 | 2. Erector Tube must have metal-to-metal contact. | Yes | |||||||
| Tube Diameter(mm) | 30 | Parallax Focus: | YES | 3. Low Temp Epoxy may be used with Erector Tube. | Yes | |||||||
| Tube Material | 6061-T6 | Light Transmission Percentage (%) | 85% | 4. Fogproof with Dry Nitrogen | Yes | |||||||
| Finish (Anodized?) | Anodized | Recoil: "g's" & # of times | 1000G/100times | 5. Recoil: 1000 Rounds | Yes | |||||||
| Tube/Body Color(s) | W/E Clicks | 0.25MOA | ||||||||||
| Black | [ √ ] | Clicks per Turn | 60 | |||||||||
| Silver | Weight (oz/g) | |||||||||||
| Reticle Type | Glass Etched Reticle | Waterproof: | YES |
|
||||||||
| Eye Relief | Fogproof: | YES | ||||||||||
| '@ LX (mm) | 115 | Shockproof: | YES | |||||||||
| '@HX (mm) | 88 | Elevation Adjustment Range (MOA) | 70 | |||||||||
| FOV | Windage Adjustment Range (MOA) | 70 | ||||||||||
| '@LX (ft.@100yds) | 40 | Parallax Setting | 10yds-∞ | |||||||||
| '@HX (ft.@100yds) | 6.8 | |||||||||||
| FOV | ||||||||||||
| '@LX (m.@100m) | 13.3 | |||||||||||
| '@HX (m.@100m) | 2.3 | |||||||||||
| Exit Pupil | ||||||||||||
| '@ LX (mm) | 20 | |||||||||||
| '@HX (mm) | 3.33 | |||||||||||
| Lens Coating Material | ||||||||||||
| Fully Coated | ||||||||||||
| Multi Coated | ||||||||||||
| Fully Multi Coated | [ √ ] | Sunshade: | Optional | |||||||||
| Fast Focusing System: | YES | Mounts: | Optional | |||||||||
