Feature
| CHENGDU MEIKE OPTICS CO., LTD | ||||||||||||||
| Riflescope Specifications |
|
|||||||||||||

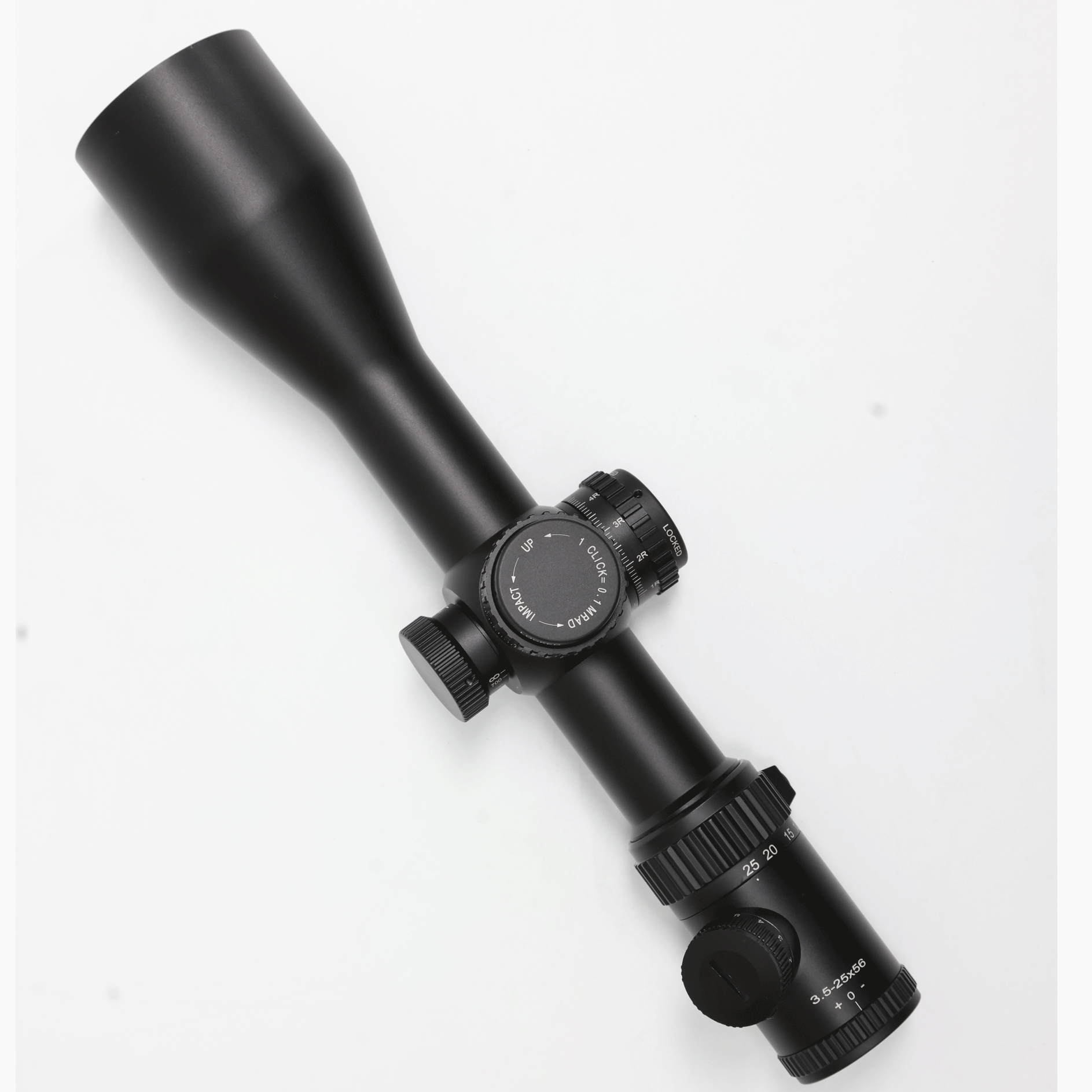

| 3.5-25X56FIR | ||||||||||||||
| Specification | ||||||||||||||
| Power | 3.5X~25X | Illuminated reticle | YES | Special Notes: | ||||||||||
| Objective (mm) | 56 | Illuminated color | Red | 1. Erector Tube must be secured with metal screws. | Yes | |||||||||
| Focal Plane | Second | Battery | CR2032 | 2. Erector Tube must have metal-to-metal contact. | Yes | |||||||||
| Tube Diameter(mm) | 35 | Parallax Focus: | YES | 3. Low Temp Epoxy may be used with Erector Tube. | Yes | |||||||||
| Tube Material | 6061-T6 | Light Transmission Percentage (%) | 89% | 4. Fogproof with Dry Nitrogen | Yes | |||||||||
| Finish (Anodized?) | Anodized | Recoil: "g's" & # of times | 1000G/100times | 5. Recoil: 1000 Rounds | Yes | |||||||||
| Tube/Body Color(s) | W/E Clicks | 0.1mil | ||||||||||||
| Black | [ √ ] | Clicks per Turn | 100 | |||||||||||
| Silver | Weight (oz/g) | 1025g | ||||||||||||
| Reticle Type | Glass Etched Reticle | Waterproof: | YES | |||||||||||
| Eye Relief | Fogproof: | YES | ||||||||||||
| '@ LX (mm) | 110 | Shockproof: | YES | |||||||||||
| '@HX (mm) | 90 | Elevation Adjustment Range (MOA) | 80 | |||||||||||
| FOV | Windage Adjustment Range (MOA) | 50 | ||||||||||||
| '@LX (ft.@100yds) | 31.4 | Parallax Setting | 20yds-infinity | |||||||||||
| '@HX (ft.@100yds) | 4.3 | |||||||||||||
| FOV | ||||||||||||||
| '@LX (m.@100m) | 10.3 | |||||||||||||
| '@HX (m.@100m) | 1.4 | |||||||||||||
| Exit Pupil | ||||||||||||||
| '@ LX (mm) | 8 | |||||||||||||
| '@HX (mm) | 2.24 | |||||||||||||
| Lens Coating Material | ||||||||||||||
| Fully Coated | ||||||||||||||
| Multi Coated | ||||||||||||||
| Fully Multi Coated | [ √ ] | |||||||||||||
| Fast Focusing System: | YES | Sunshade: | Optional | |||||||||||
| Mounts: | Optional |
